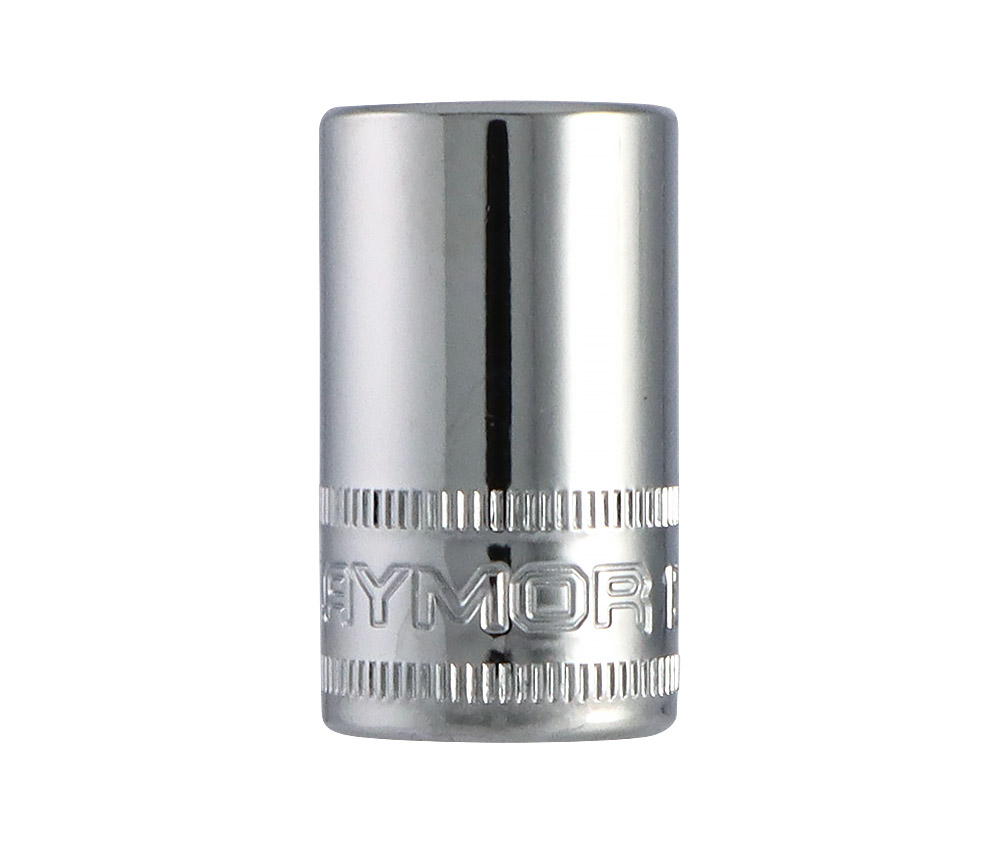

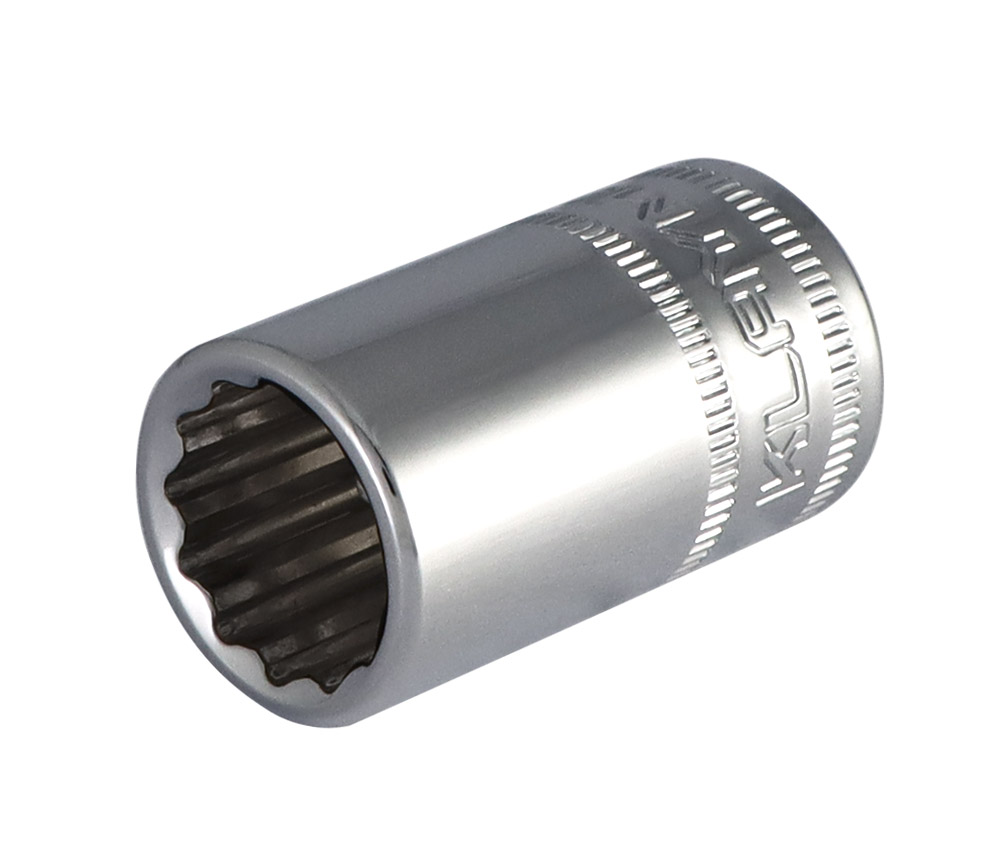

1/2" DR. SOCKETS

  • METRIC
  • 12PT
  • Alloy Chrome-Vanadium Steel, Polished, Chrome.
  • 4 Ball Grooves for Position.
  • Thin wall construction for easy access in tight spaces.

socket 12pt diagram

Please scroll the table
Item No.DescriptionD1(mm)D2(mm)L1(mm)L2(mm)
KRS1212080 8mm 14 23.87 39 3.75
KRS1212090 9mm 15.1 23.87 39 4.05
KRS1212100 10mm 16.8 23.87 39 4.6
KRS1212110 11mm 18.2 23.87 39 5.45
KRS1212120 12mm 18.7 23.87 39 6.1
KRS1212130 13mm 20.25 23.87 39 6.75
KRS1212140 14mm 21.8 23.87 39 8.35
KRS1212150 15mm 22.4 23.87 40 8.35
KRS1212160 16mm 23.87 23.87 40 9.5
KRS1212170 17mm 24.75 24.75 40 9.5
KRS1212180 18mm 26.14 26.14 40 10.15
KRS1212190 19mm 27.2 27.2 40 11.1
KRS1212200 20mm 27.95 27.95 42 11.5
KRS1212210 21mm 28.95 28.95 42 11.7
KRS1212220 22mm 30.2 30.2 45 12.45
KRS1212230 23mm 31.25 31.25 45 12.7
KRS1212240 24mm 32.15 32.15 45 13.85
KRS1212250 25mm 33.4 33.4 45 14
KRS1212260 26mm 35.05 35.05 48 14.6
KRS1212270 27mm 36.75 36.75 48 15.8
KRS1212280 28mm 37.8 37.8 50 16.25
KRS1212290 29mm 39.5 39.5 50 16.65
KRS1212300 30mm 42.4 42.4 50 16.65
KRS1212310 31mm 43.2 43.2 50 17.8
KRS1212320 32mm 44.5 44.5 51 19
