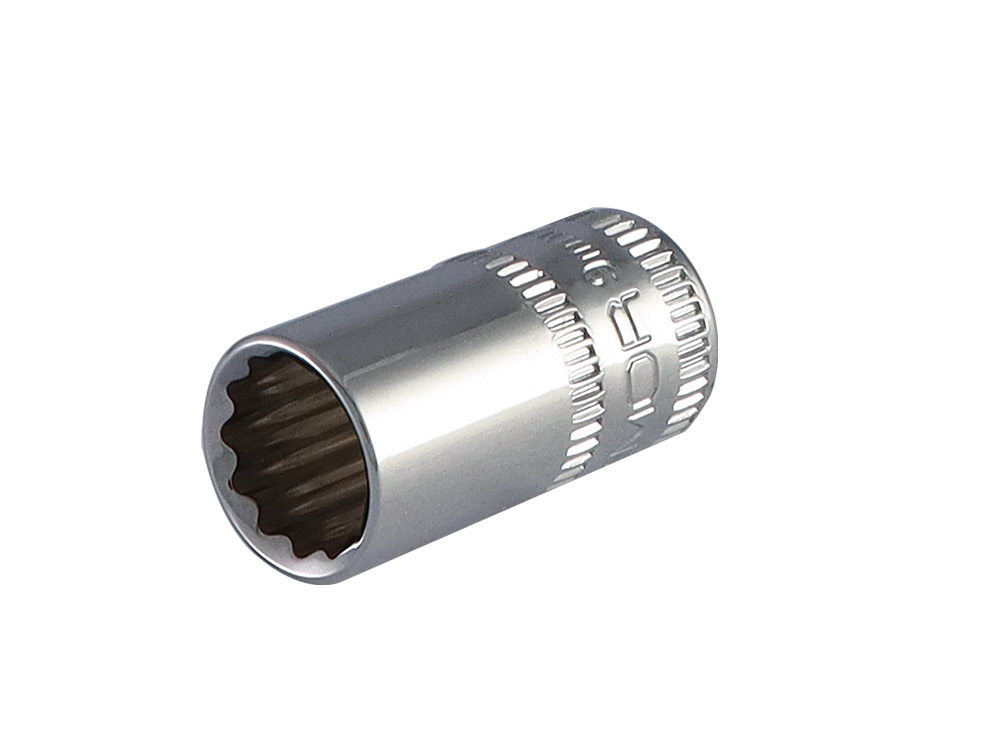

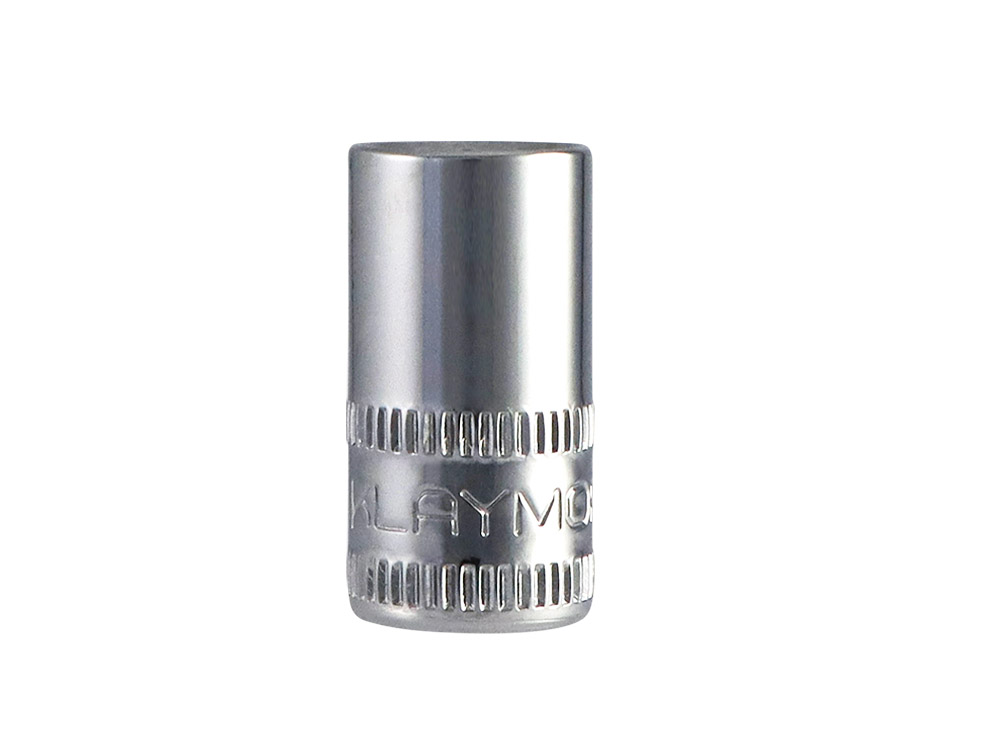

DADO ENCASTRE DE 1/4”

  • MÉTRICO
  • 12PT
  • Aleación de Acero cromo vanadio, acabado pulido.

  • 4 ranuras semiesféricas para posicionamiento.

  • Construcción con paredes delgadas para fácil acceso en lugares reducidos.

deepsocket 12pt diagram

Please scroll the table

No. de producto

Descripción

D1(mm)D2(mm)L1(mm)L2(mm)
KRS1412040 4mm 7.1 12.95 26 2.8
KRS1412045 4.5mm 7.6 12.95 26 2.8
KRS1412050 5mm 8.15 12.95 26 2.8
KRS1412055 5.5mm 8.9 12.95 26 2.8
KRS1412060 6mm 9.9 12.95 26 3.05
KRS1412070 7mm 10.9 12.95 26 3.55
KRS1412080 8mm 12.2 12.95 26 3.55
KRS1412090 9mm 13.45 13.45 26 4.05
KRS1412100 10mm 14.75 14.75 26 4.6
KRS1412110 11mm 16 16 26 5.46
KRS1412120 12mm 17.3 17.3 26 6.1
KRS1412130 13mm 18.55 18.55 26 6.75
KRS1412140 14mm 19.8 19.8 26 6.75
